Bryant Ductless Systems
Bryant® Ductless Systems are a flexible solution for your home’s heating or cooling needs. Perfect for room additions or anywhere ductwork is a challenge, they offer single and multi-zone styles that can be installed high on the wall, in the ceiling, or near the floor.
Select a model below to learn more.
Bryant Evolution® Series Ductless Systems
Bryant® Evolution® Series ductless systems represent our most capable and energy efficient options for delivering comfort to a single space, or throughout your entire home. Our multi-zone system gives you individual control for up to nine separate living areas.
Bryant Preferred™ Series Ductless Systems
Preferred™ Series ductless systems provide a comfortable balance between performance and price, delivering up to 25 SEER cooling and up to 12.0 HSPF heating ratings. Our multi-zone systems can control comfort in up to five separate spaces, while our single-zone systems maintain optimal performance at lower outdoor temperatures.
Bryant Legacy™ Line Ductless Systems
When comfort and flexibility demand affordability as well, consider our Legacy™ Line ductless systems. Enjoy calm, soothing comfort with extra-quiet operation as low as 27 dB(A). At the same time, you can expect economical performance as high as 17.5 SEER cooling and 9.0 HSPF heating.
Evolution® Series 38MPRA
If maximum performance and efficiency are key, look no further than our Evolution™ System heat pump. This ENERGY STAR® qualified ductless system comes with a 42 SEER rating when paired with the 619PHA High Wall – there’s nothing more efficient1! Even when temps drop to as low as -22° F outside, your interior environment stays cozy (when properly sized and matched with specific indoor units). Powerful yet quiet, our best ductless outdoor solution delivers results.
- According to system ratings maintained by AHRI as of January 22, 2018, in accordance with the AHRI Unitary Small Equipment Operations Manual. The 9,000 Btu/h single zone ductless has a 42 SEER Rating.
- 100% Heating Capacity at 0° F (-17° C)
- 100% Cooling capacity at -22° F (-30° C) without additional kit
- Up to 75% of Heating Capacity at -22° F (-30° C)
- Inverter Compressor
- Up to 42.0 SEER cooling efficiency
- Up to 15.0 EER heating efficiency
- Available in 208/230V
- Sizes: 09 / 12
- Built-in basepan heater
- Auto-restart function
- Refrigerant leakage detection
- Quiet outdoor operation, as low as 55 dB(A)
- Anti-corrosive fin coating
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
Evolution® Series 619PHA
Today’s lifestyles demand more than yesterday’s technology. Your home’s heating and air conditioning needs can be met with new, more efficient and advanced systems. The Bryant Evolution™ 619PHA High Wall, when paired with the 38MPRA single zone, has our highest efficiency rating at 42 SEER. There’s nothing more efficient1! The High Wall is also compatible with the 38MGR multi-zone to be flexible to fit any application. Along with the technology to optimize the comfort of any home, such as built-in Wi-Fi® to control your system anywhere or being compatible with third party thermostats, thanks to the 24V Interface. In addition, the unit has a smart sensor technology that not only detects the temperature in the room but also the humidity level. With the use of the Wireless Controller, you can customize the humidity level to your preference. This system has an occupancy sensor that senses a person in a room and can direct airflow either toward or away from that person. Doesn’t your home deserve the best?
1 According to system ratings maintained by AHRI as of January 22, 2018, in accordance with the AHRI Unitary Small Equipment Operations Manual. The 9,000 Btu/h single zone ductless has a 42 SEER Rating.
- Available in 208/230V
- Sizes: 09 / 12 / 18 / 24
- Follow Me (senses temperature at handheld remote)
- Heating Seack (46° F Heating Mode)
- Up-down / right-left louver control (fixed or swing)
- Relative Humidity Sensor
- Intelligent Eye (occupancy sensor)
- Built-in Wi-Fi®
- ECO Mode
- Quiet indoor operation, as low as 29 dB(A)
- Anti-corrosive fin coating
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration

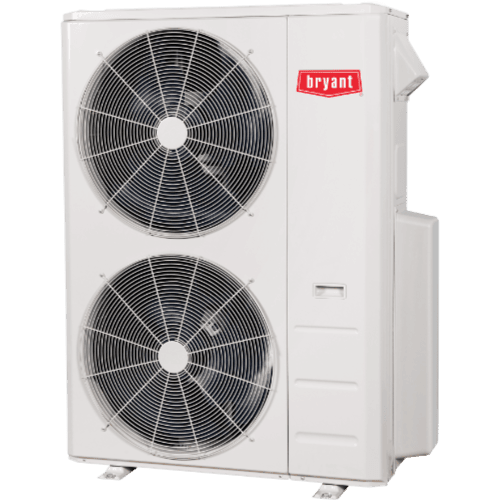

Preferred™ Series 38MGR
Perfect for a home without ductwork or a newly converted space, our PreferredTM Series multi-zone heat pump might be the right choice for you. As a part of the MGR Multi-Zone Ductless System, you can use up to five indoor units supported by just one outdoor unit. The Inverter compressor delivers year-round comfort on the hottest summer days to colder, winter nights (100% capacity as temperatures down to 5° F when properly sized and matched with specific indoor units).
- 100% Heating Capacity at 5° F (-15° C) (Sizes 24 to 36)
- Inverter Compressor
- Up to 23.8 SEER cooling efficiency
- Up to 10.5 HSPF heating efficiency
- Select sizes are ENERGY STAR® certified based on indoor combinations
- Available in 208/230V
- Sizes ranging from 18 to 48
- Built-in basepan heater
- Total piping lengths range from 131 ft. to 328 ft. (40 ~ 100 m) depending on unit size
- Connects two to five multiple style indoor units (PreferredTM) to a single outdoor unit
- Condenser high-temperature protection
- Refrigerant leakage detection
- Quiet outdoor sound operation, as low as 62 decibels
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
- Compatible units: 619PB High Wall, 619RC Cassette, 619RD Ducted, 619RF Floor Console
Preferred™ Series 38MAR
Great for a room addition or converted space, this PreferredTM Series ductless heat pump isn't afraid of a little cold snap. Designed to deliver in conditions that other heat pumps fear, this model can pump out 100% of its capacity as temperatures drop to 5° F outside (when properly sized and matched with specific indoor units). Efficient, quiet and flexible, it's the practical solution for your ductless needs.
- 100% Heating Capacity at 5° F (-15° C)*
- Inverter Compressor
- Up to 25.0 SEER cooling efficiency
- Up to 12.0 HSPF heating efficiency
- Select sizes are ENERGY STAR® certified based on indoor unit pairing
- Available in 115V and 208/230V
- Sizes ranging from 09 to 36
- Built-in basepan heater
- Piping length 82-164 ft. depending on unit capacity and system configuration
- Refrigerant leakage detection
- Condenser high-temperature protection
- Quiet outdoor sound operation, as low as 52.5 decibels
- Line lengths 82-164 ft. depending on unit capacity and system configuration
- 46° F heating mode (heating setback)
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
- Compatible units: 619PB High Wall, 619RC Cassette, 619RD Ducted, 619RF Floor Console
Preferred™ Series 38MBRB
The 38MBRB heat pump can be matched with an indoor fan coil to provide reliable cooling and heating performance at low sound levels. This unit can operate in a wide range of outdoor temperatures, providing year-round comfort regardless of the temperature outside.
ENERGY STAR® QUALIFIED: Some sizes qualified
- Inverter Compressor
- Up to 18 SEER cooling efficiency
- Up to 11.5 HSPF heating efficiency
- Select sizes are ENERGY STAR® certified based on indoor unit pairing
- Available in 208/230V
- Sizes 36,48
- Built-in basepan heater
- Piping length 213
- Refrigerant leakage detection
- Condenser high-temperature protection
- Quiet outdoor sound operation, as low as 61.7 decibels
- 46° F heating mode (heating setback)
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
Preferred™ Series 40MBAA
Perfect for space conversions or add-ons where ductwork is not available, the Preferred™ Series indoor Cassette puts heating and cooling delivery comfortably in your ceiling. It's a reliable and versatile three fan speed indoor unit for our R*C Cassette Ductless System, or one component of our T Multi-Zone Ductless System.
- Select sizes are ENERGY STAR® certified based on outdoor unit pairing
- Available in 208/230V
- Modes: Cool, Heat, Dry, Fan, Auto
- Sizes ranging from 09 to 18
- Three fan speeds
- Louver Control (fixed or swing)
- Auto-restart function after power failure
- Quiet indoor sound operation, as low as 34 decibels
- Built-in condensate lift pump
- Heating Setback (46° F Heating Mode)
- Follow Me (senses temperature at handheld remote)
- System diagnostics
- Wireless Remote Controller standard
- Optional Wired Remote Controller (Timer Function)
- Optional Wired Remote Controller (7-Day Programmable)
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
- Compatible units: 38MAR Single Zone Heat Pump with Basepan Heater, 538PR Single Zone Heat Pump with Basepan Heater, 538TR Multi-Zone Heat Pump with Basepan Heater
- Optional Features:
- Insulated 25' Lineset
Preferred™ Series 619AHB
When selecting an HVAC system, it’s a no-brainer that it needs to be efficient and flexible. But what about the installation, use and service of that system? Well, it should be equally as low maintenance and stress-free. Get the ease of use and reliability you’ve come to expect from your HVAC system with the Bryant High Wall—the ductless indoor unit designed to improve efficiency, usability and overall in-home comfort
- Select sizes are ENERGY STAR® certified based on outdoor unit pairing
- Available in 115V and 208/230V
- Modes: Cool, Heat, Dry, Fan, Auto
- Right-left louver control
- Sizes ranging from 06 to 36
- Four fan speeds
- Heating Setback (46° F Heating Mode)
- Turbo Mode
- Follow Me (senses temperature at handheld remote)
- Quiet indoor sound operation, as low as 24 decibels
- Aluminum Blue Hydrophilic pre-coated fins
- Wireless Remote Controller standard
- Optional Wired Remote Controller (Timer Function)
- Optional Wired Remote Controller (7-Day Programmable)
- Optional Wired Remote Controller (Timer Function)
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
- Compatible units: 38MARB Single Zone Heat Pump with Basepan Heater, 38MGR Mutli-Zone Heat Pump with Basepan Heater
- Optional Features:
- Condensate Pump (115V and 230V optional)
- Insulated 25' Lineset

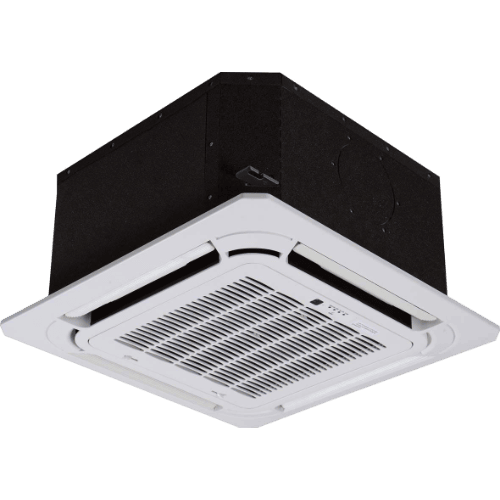

Preferred™ Series 40MBCQ
Ideal for a converted space or room addition where ductwork is not available, the Preferred™ Series 40MBCQ Cassette fits comfortably over-head to deliver quiet, unobtrusive heating and cooling. It senses the temperature at your handheld remote to place comfort where you need it most, and provides the right amount of airflow with three available fan speeds. Designed for versatility, it’s a key component to either a single or multi-zone system.
- Sizes: 09 / 12 / 18
- Available in 208/230V
- Modes: Cool, Heat, Dry, Fan, Auto
- Vertical or horizontal installation
- Auto-restart function
- Louver control (fixed or swing)
- Three fan speeds
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation, as low as 34 decibels
- Built-in condensate lift pump
- Aluminum Blue Hydrophilic pre-coated fins
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration

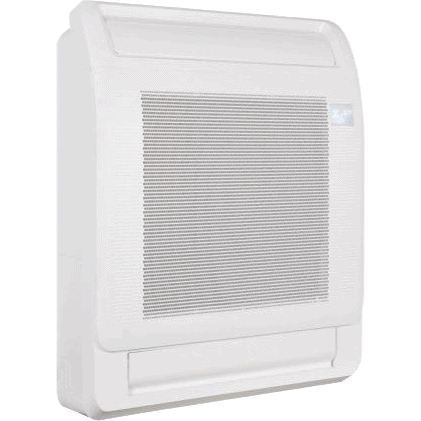

Preferred™ Series 40MBFQ
As part of a ductless single or multi-zone system, the Preferred™ Series 40MBFQ Floor Console is a comfortable fit. Sitting out of sight, but not out of mind, it blends into your new or converted space to deliver quiet, heating and cooling comfort. It senses the temperature at your handheld remote to let comfort follow you. And, it provides the right amount of airflow with three available fan speeds.
- Sizes: 09 / 12
- Available in 208/230V
- Modes: Cool, Heat, Dry, Fan, Auto
- Up to 0.4 in WG
- Auto-restart function
- Louver control (fixed or swing)
- Three fan speeds
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation, as low as 30 decibels
- Aluminum Blue Hydrophilic pre-coated fins
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
Preferred™ Series 40MBDQ
Designed for in-ceiling, below-the-floor or vertically in the wall applications, the Preferred™ Series 40MBDQ Ducted indoor unit is the perfect fit. It senses the temperature at your handheld remote and delivers the right amount of airflow with three available fan speeds. And it’s quiet, too, the perfect complement to a single or multi-zone ductless comfort system. This unit is also available in a high-static model compatible with our 38MBR single zone heat pump.
- Sizes: 18 / 24 / 36 / 48
- Available in 208/230V
- Modes: Cool, Heat, Dry, Fan, Auto
- Vertical or horizontal installation
- Up to 0.64 in WG
- Rear or bottom return
- Outside air intake
- Built-in condensate lift pump
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation, as low as 35 decibels
- Aluminum Blue Hydrophilic pre-coated fins
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
Legacy™ Line 38MHRBQ
Our most energy-efficient Legacy™ Line ductless heat pump, the Model 38MHRBQ, delivers quiet, variable-speed comfort where typical ducted systems can’t. This economical outdoor unit saves space while saving money with its compact cabinet and affordable cost. When matched with a compatible Bryant high wall indoor unit, it gets up to speed in a hurry to provide cooling or heating comfort for a room addition or converted space.
- Sizes: 09 / 12 / 18 / 24
- Available in 115V and 208/230V
- Refrigerant leakage detection
- Auto-restart function
- Condenser high-temperature protection
- Quiet outdoor operation, as low as 50.5 decibels
- Anti-corrosive fin coating
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
Legacy™ Line 40MHHQ
When budget is a consideration but comfort is a must, our Legacy™ Line 40MHHQ High Wall indoor ductless unit is the ideal choice for heating or cooling your room addition or newly converted space. It’s convenient too, with a temperature-sensing wireless handheld remote that lets comfort follow you. Designed for single or multi-zone use, it offers customizable comfort with four available fan speeds and louvers that can either move or remain stationary.
- Sizes: 09 / 12 / 18 / 24
- Available in 115V and 208/230V
- Auto-restart function
- Turbo Mode
- Four fan speeds
- Sleep Mode
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Up-down louver control (fixed or swing)
- Filter is removable from the top
- Improved serviceability with easy access to fan and electrical connections
- Quiet indoor operation, as low as 27 decibels
- Aluminum Blue Hydrophilic pre-coated fins
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
